On this page you will learn all the important details about our ScreenTrain products, the flexible and movable TV ceiling mount. For more information, please use the PDF document provided for download or contact us via the contact page.
ScreenTrain TV ceiling mount - Technical Data
General data
| TV ceiling mount | up to 85 inches |
| Maximum carrying weight | up to 60kg |
| Dead weight* | 27 to 50,5kg |
| Integrated cable management | available |
| Rotatable TV mount | VESA standard: |
| 300x300mm
400x400mm 600x400mm (downwards compatible) |
* depending on ScreenTrain variant (length of unit)
Dimensions
| Rail system with side covers (HxBxT) | |
| 2 metres ScreenTrain | 5.7 x 212.6 * x 33.5cm |
| 3 metres ScreenTrain | 5.7 x 312.6 * x 33.5cm |
| 4 metres ScreenTrain | 5.7 x 412.6 * x 33.5cm |
* minimum required free installation width = system width B + 2,3cm
Material
| Guide rail | anodised aluminium |
| Base plate | steel, powder-coated |
| Vertical bracket | steel, powder-coated |
| Main and side covers | synthetic resin |
Available connections for your TV
The TV mount ScreenTrain is based on Plug and Play.
Basic connections
The following three connections are available as basic connections
- Power connection
- 2x HDMI (8K video / audio)
- TV antenna
- Ethernet (RJ45)

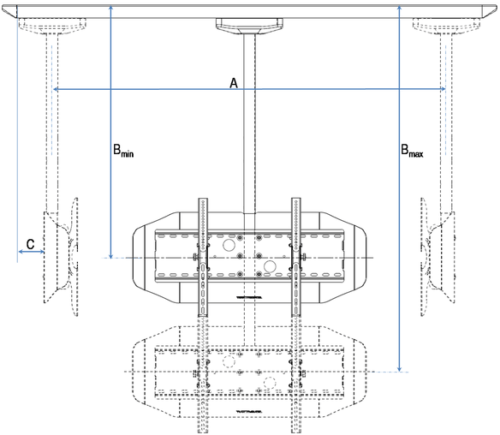

Mobility: travel, inclination & rotation
possible movements
| A | Bmin | B max | C | |
| 2 metres ScreenTrain | 1.6m | 1.1m | 1.6m | 15.5cm (17.5cm) * |
| 3 metres ScreenTrain | 2.6m | 1.1m | 1.6m | 15.5cm (17.5cm) * |
| 4 metres ScreenTrain | 3.6m | 1.1m | 1.6m | 15.5cm (17.5cm) * |
* () without reflector shield
The height of your TV can be set in 10 cm increments..
Klicken zum Vergrößern
Rotation & tilt
The TV mount is completely rotatable about its own axis. For all ScreenTrain variants, the TV set can be rotated 360 ° and tilted +/- 15 ° so you can adapt the TV at any time to your needs and the spatial conditions.
- 360° rotation
- +/- 15° tilt
Klicken zum Vergrößern
ScreenTrain – Technical Datasheet.pdf
Adobe Acrobat Document 2.4 MB
